Punch

Fast Link Access Gate — SRT session brokerage for broadcast.

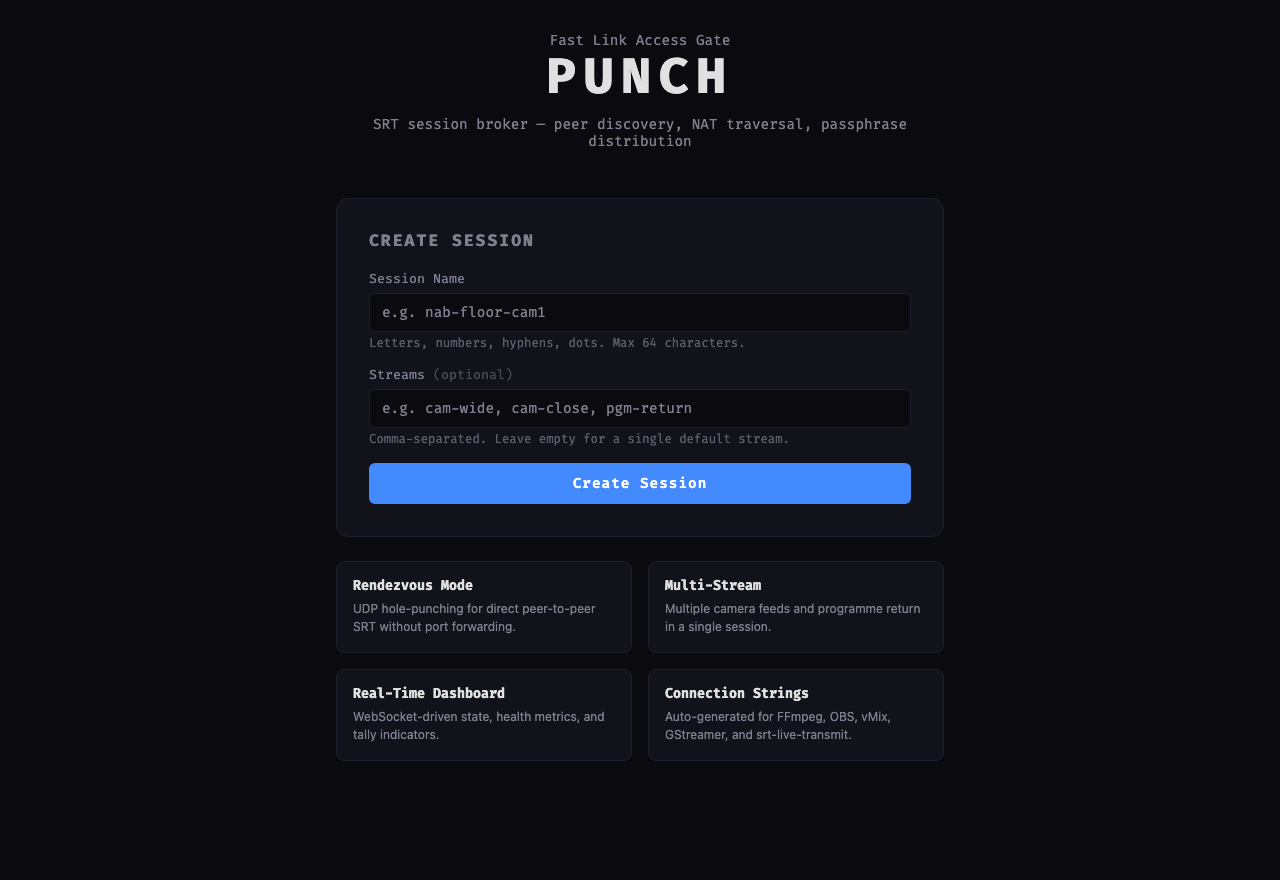

Punch landing page

Punch is a free, open-source signalling service that lets SRT endpoints find each other and connect — without manual port forwarding or static IP coordination, on networks that allow UDP rendezvous. It runs on Cloudflare Workers and costs nothing to operate.

The problem

Every SRT connection today requires manual coordination:

Someone opens a UDP port on a public IP
Both sides agree on IP, port, passphrase, and latency — via phone, Signal, email, or spreadsheet
Someone configures caller vs listener mode (and gets it wrong half the time)
Repeat for every camera, every show, every venue

For a 4-camera ISO shoot, that’s 4 separate coordination conversations. On a hotel WiFi with double NAT, it’s impossible without a relay server.

Commercial solutions exist (Haivision Hub, LiveU, Teradek Sharelink) — starting at hundreds of dollars per month, locked to proprietary hardware, closed ecosystems.

Between free CLI tools and enterprise SaaS, there is nothing.

Punch fills that gap.

How it works

Producer creates a session → gets a URL and QR code
Encoder scans the QR → registers with Punch, reports its public IP:port
Decoder does the same → Punch sends each peer the other’s coordinates
Both start SRT in rendezvous mode → direct peer-to-peer, NAT hole-punched
Punch stays connected → monitors health, carries tally, shows dashboard

The signalling server never touches the media. It brokers the introduction, then gets out of the way.

Quick start

From the web UI (recommended)

Open punch.thåst.se, enter a session name, and create the session. You will be taken to the operator dashboard at punch.thåst.se/s/<name>?t=<token>.
Show the QR code on screen, or send the operator URL to the camera operator. They register their SRT endpoint with one tap.
When both peers register, Punch reveals the auto-generated connection strings — ffmpeg, OBS, vMix, GStreamer and srt-live-transmit, ready to paste.

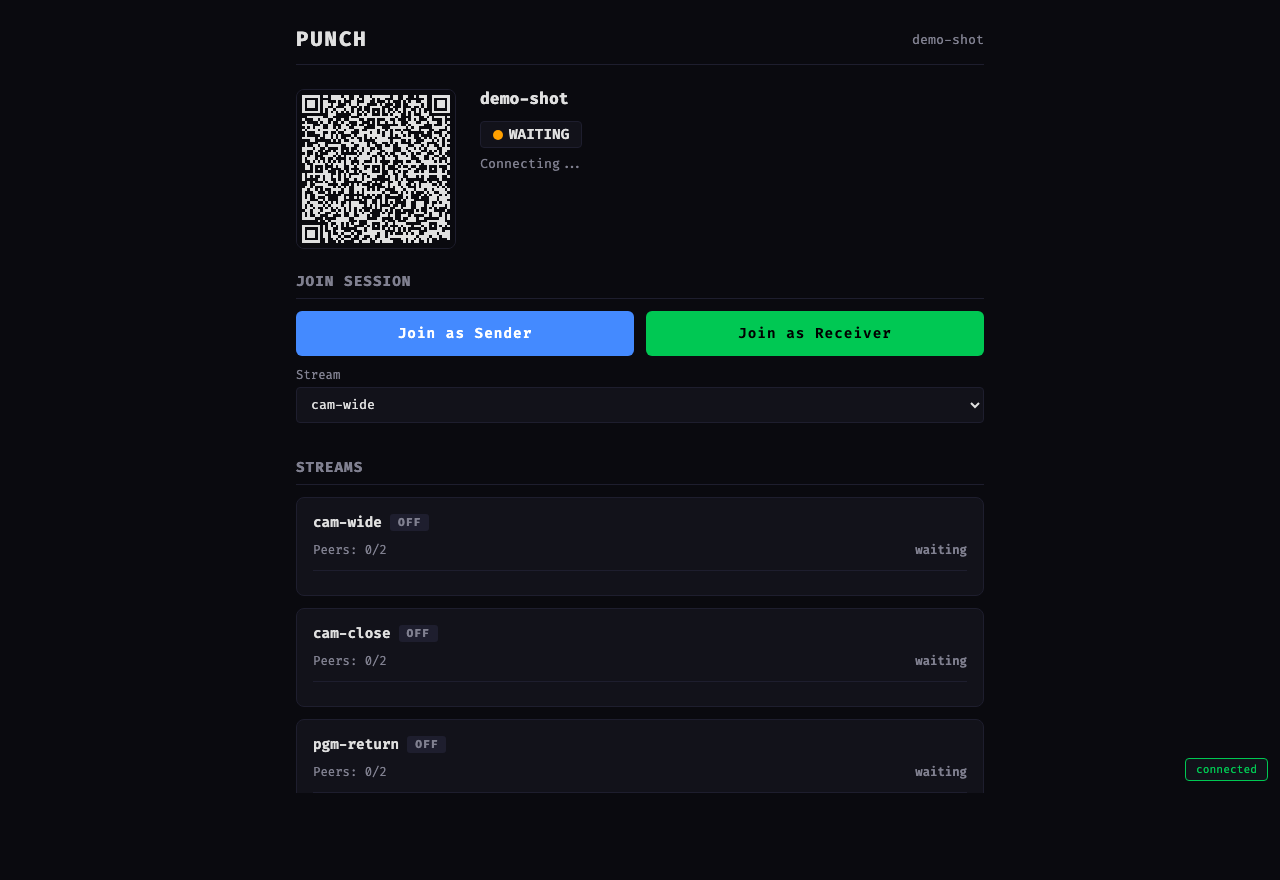

Session dashboard with QR, multi-stream view, and Join controls

A 60-second walkthrough lives in docs/quick-start.md.

Programmatic / self-hosted

The HTTP API works the same way against any Punch deployment. The hosted service punch.thåst.se enforces Cloudflare Turnstile on POST /api/session, so curl-only callers must use a self-hosted instance (no Turnstile secret set), or supply a turnstileToken from a Turnstile-enabled client.

# Self-hosted instance — no Turnstile secret configured
curl -X POST http://localhost:8787/api/session \
  -H 'Content-Type: application/json' \
  -d '{"name": "nab-floor-cam1"}'

Response:

{
  "session": "nab-floor-cam1",
  "token": "p_abc123...",
  "url": "http://localhost:8787/s/nab-floor-cam1",
  "qr": "http://localhost:8787/s/nab-floor-cam1/qr",
  "streams": ["default"],
  "latency": 200,
  "ttl": 1800,
  "state": "WAITING",
  "created": "2026-05-03T11:49:15.620Z"
}

After both peers register, fetch the connection strings:

curl -H "Authorization: Bearer $TOKEN" \
  http://localhost:8787/api/session/nab-floor-cam1/connect

The response contains parallel for_peer_a and for_peer_b format maps. See docs/protocol.md for the full shape.

Features

Session brokerage

Peer discovery — no manual IP exchange
NAT traversal — UDP hole punching via SRT rendezvous mode
Passphrase distribution — auto-generated AES keys, never texted
Auto-generated commands — exact FFmpeg, OBS, vMix, and GStreamer strings

Multi-camera sessions

Session bundles — group multiple SRT streams under one production
Per-stream metadata — camera role, audio config, labels
One QR per camera — operators scan and stream, nothing else

Real-time monitoring

Stream health dashboard — RTT, retransmit ratio, bitrate, buffer levels
Colour-coded status — green/amber/red, visible at arm’s length
Latency recommendation — measured RTT → suggested setting

Production control plane

Tally signalling — on-air/preview/off state via WebSocket
Camera labels — human-readable names on the dashboard
Session state machine — WAITING → READY → CONNECTED → CLOSED

Architecture

Punch runs entirely on Cloudflare Workers with Durable Objects:

Edge Worker — handles HTTP/WebSocket routing, JWT validation
Session Durable Object — one instance per session, strong consistency
Hibernatable WebSockets — idle connections cost nothing
Alarm API — automatic session cleanup after 30 minutes of inactivity

No servers to maintain. No databases to manage. Free tier handles ~3,000 sessions/day.

Why Durable Objects, not KV

Workers KV has eventual consistency — up to 60 seconds propagation delay. For signalling, that means peer B might not see peer A’s registration for a full minute. Fatal.

Durable Objects provide single-threaded strong consistency per session. One object per session. No race conditions. No stale state.

The Punch protocol

PUNCH — Peer Unification via NAT Crossing Handshake

A minimal signalling protocol for SRT session brokerage. Designed to be what WHIP is for WebRTC — a simple, standardised way to negotiate SRT connections over HTTP and WebSocket.

Session lifecycle

WAITING     Both peers not yet registered
READY       Coordinates exchanged, rendezvous can begin
CONNECTED   SRT connection established (reported by peers)
RELAYING    Hole punch failed, relay path active (future)
CLOSED      Session terminated or TTL expired

WebSocket messages

// Peer → Punch
{ type: 'register', port: 9000, meta: { label: 'CAM-1', audio: 'stereo' } }
{ type: 'health',   rtt: 45, retransmit: 0.2, bitrate: 8500000 }
{ type: 'status',   srt: 'connected' }

// Punch → Peer
{ type: 'peer',     ip: '198.51.100.3', port: 9000, passphrase: '...' }
{ type: 'tally',    state: 'preview' }
{ type: 'session',  streams: [...], connected: 3, total: 4 }

Full protocol specification: docs/protocol.md

Comparison

Solution	Cost	Signalling	Multi-cam	Monitoring	Open source
FFmpeg CLI	Free	Manual	No	No	Yes
srt-live-transmit	Free	Manual	No	No	Yes
SRT Mini Server	$30/mo	Basic	No	Basic	No
Punch	Free	Automatic	Yes	Yes	Yes
LiveU Solo	$450/yr + hw	Proprietary	Limited	Yes	No
Haivision Hub	Enterprise	Proprietary	Yes	Yes	No

Documentation

Document	Description
`docs/why.md`	Why Punch exists — design philosophy and origin essay
`docs/architecture.md`	Technical architecture, Durable Objects, state machine
`docs/protocol.md`	Protocol overview — narrative reference
`docs/spec/punch-protocol-rfc.md`	Formal protocol specification (RFC-style, normative)
`docs/spec/openapi.yaml`	OpenAPI 3.1 description of the HTTP API
`docs/spec/punch-messages.schema.json`	JSON Schema 2020-12 for WebSocket messages
`docs/nat-traversal.md`	NAT types, hole punching, relay fallback
`docs/srt-primer.md`	SRT fundamentals for context
`docs/integration.md`	FFmpeg, OBS, vMix, CasparCG, hardware encoders
`docs/security.md`	Tokens, passphrases, access control
`docs/deployment.md`	Cloudflare Workers setup and configuration
`docs/roadmap.md`	Phased feature roadmap

Known limitations

Punch is honest about what it does and does not do.

Signalling only, no media. Punch never touches video or audio. The signalling server brokers the introduction; once peers exchange coordinates, SRT runs direct peer-to-peer between them.
NAT traversal is signalling-assisted, not guaranteed. Punch coordinates the rendezvous, but it does not run STUN, TURN, or any UDP probing. The connection succeeds whenever the encoder’s NAT preserves a usable UDP mapping for the duration of the SRT handshake. In practice this covers the bulk of fixed-line and broadcast-venue deployments (port-preserving / cone NATs) and most prosumer home routers. It does not cover symmetric NAT, carrier-grade NAT, or networks that aggressively rewrite UDP source ports between packets — those need a TURN-style relay (Phase 3 roadmap). Field-validation matrix in progress; please file an issue with your environment if rendezvous fails.
Cloudflare-locked. Punch is built on Cloudflare-specific primitives — Workers, Durable Objects, hibernatable WebSockets, the alarm API. Running it elsewhere would be a rewrite. This is a deliberate trade-off: it makes the service free and globally distributed, but not portable.
IPv4 first. SRT rendezvous and the underlying UDP hole-punching mechanics are exercised on IPv4. IPv6 paths work but have less field validation in v1.0.
Free-tier scaling. The free Cloudflare Workers tier covers roughly 3,000 sessions per day. Sustained higher volumes need a paid Workers plan or a self-hosted deployment.
Operator URL = session-scoped admin token. The producer URL (/s/<session>?t=<token>) embeds the admin token. Anyone holding it can observe peer_match events and close the session. The token is bound to the single session and expires with its TTL — treat it like the SRT passphrase itself: send it through a private channel, do not paste it into shared chats. Per-peer scoped tokens with a separate join UI are on the roadmap (Phase 2/3); v1.0 ships with admin-scoped operator URLs and per-stream peer tokens via the API.

If any of these matter for your use case, open an issue — several are roadmap items waiting on a real-world driver.

Roadmap

Phase 1 — MVP

Session creation and peer discovery
WebSocket signalling with Durable Objects
Auto-generated FFmpeg/OBS/vMix commands
Web UI with QR code
Passphrase distribution

Phase 2 — Production grade

Multi-stream session bundles
Real-time health dashboard
Tally signalling
Latency recommendation engine

Phase 3 — Ecosystem

Formal protocol specification — see docs/spec/
Relay (TURN) fallback for symmetric NAT
CLI companion tool
Pre-flight network analysis

See docs/roadmap.md for the detailed phased plan.

Testing

npm test          # Vitest under @cloudflare/vitest-pool-workers
npm run check     # TypeScript type-check (no emit)

113 tests cover the HTTP and WebSocket surface end-to-end, session lifecycle, authentication, per-token stream-scope enforcement, rate limiting, CSP headers, and Turnstile verification.
